Description

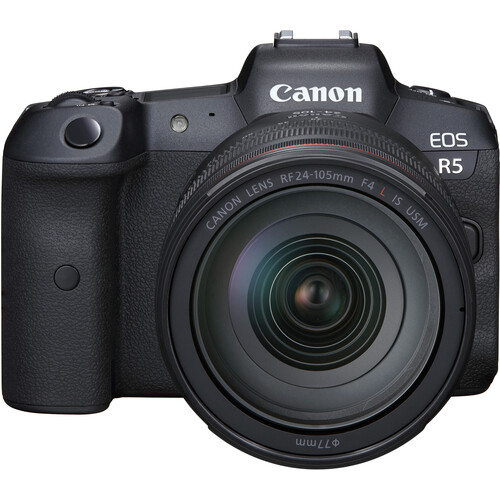

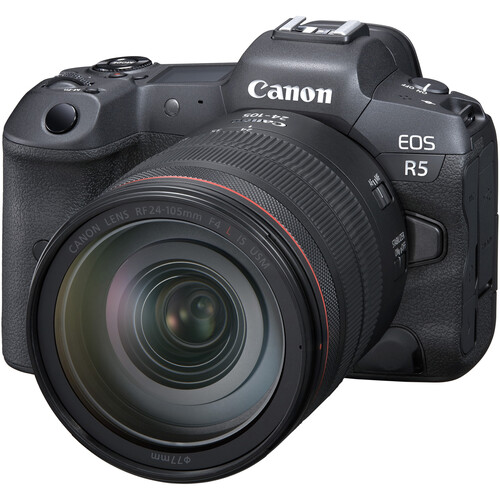

The Canon EOS R5 Mirrorless Digital Camera is ideal for the professional image-maker who needs resolution, speed, and video capabilities.
45MP Full-Frame Sensor and DIGIC X Processor
Built around a newly developed 45MP Full-Frame CMOS Sensor, the EOS R5 offers both high-resolution stills and video output and the fine-tuned DIGIC X Image Processor complements this with a wealth of speed.
Sensitivity from ISO 100-51200, which can be expanded to ISO 102400, suits working in a variety of lighting conditions, while quick continuous shooting up to 12 fps with a mechanical shutter, or silent 20 fps with an electronic shutter, is ideal for working with moving subjects.
8K30 Raw and 4K120 Video Recording
Benefiting more than just stills, the 45MP Full-frame Sensor also enables impressively high-resolution DCI 8K 30 fps raw video recording internally along with 4K recording up to 120 fps in 4:2:2 10-bit with Canon Log.
HDR-PQ recording is possible, too, in-camera HDR production and external recording, via the HDMI port support a clean 4K output at up to 60 fps.
Both All-I and IPB compression options are available, along with the ability to use Dual Pixel CMOS AF when shooting at up to 8K raw.
Dual Pixel CMOS AF II
An updated Dual Pixel CMOS AF II features 1053 selectable focusing points, which cover approximately 100% of the image frame for wide and even coverage.
This focusing system offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus.
This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across the majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement.
When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot.
When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority.
Benefiting the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner.
Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system’s ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
Subject tracking has also benefited through the use of Deep Learning technology, which helps to gradually refine the focusing system’s ability to quickly and accurately recognize both people and animal subjects.
This technology also supports the more refined eye, face, and head detection functions, for both people and animals, that are well-suited for portraiture applications.
Sensor-Shift Image Stabilizer
A first for EOS cameras, the R5 incorporates five-axis sensor-shift image stabilization that compensates for up to an impressive eight stops of camera shake for truly effective compensation of camera shake to suit handheld shooting with slower shutter speeds. This stabilization system also works in concert with lens-based optical image stabilization for both native RF lenses and adapted EF lenses.
Body Design and Wireless Connectivity
- High-resolution 5.67m-dot 0.5″ electronic viewfinder provides a bright and detailed means for eye-level viewing and the quick 120 fps refresh rate offers natural motion rendering for a more realistic viewfinder experience.
- Rear 3.2″ 2.1m-dot LCD touchscreen features a vari-angle design that benefits front-facing recording, such as for vlogging needs, as well as working from high and low shooting angles.
- Top status LCD can be used to quickly review camera and shooting settings.
- CFexpress Type B and SD UHS-II memory card slots are featured for flexible storage needs; the CFexpress slot is ideal for 8K video and high-speed, high-resolution burst shooting needs, while the SD card slot retains a familiar form factor for wide compatibility.
- Both a 3.5mm headphone and a 3.5mm external microphone port are featured for improved audio monitoring and recording capabilities.
- Refined body design incorporates four distinct control dials across the body for intuitive tactile control and a joystick controller is used on the back of the camera for fast and intuitive focus point selection and menu navigation.
- The durable, weather-sealed body design is built to handle tough working conditions and inclement weather.
- Both 5 GHz and 2.4 GHz Wi-Fi bands are available for fast file transfers to a mobile device and Bluetooth is also available to provide constant device connected via the Canon Camera Connect app.
SPECIFICATIONS
Imaging
Lens Mount |
Canon RF |
Sensor Resolution |
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464) |
Sensor Type |
36 x 24 mm (Full-Frame) CMOS |
Image Stabilization |
Sensor-Shift, 5-Axis |
Built-In ND Filter |
None |
Capture Type |
Stills & Video |
Exposure Control
Shutter Type |
Electronic Shutter, Mechanical Focal Plane Shutter |
Shutter Speed |
Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 0.5 Seconds |
ISO Sensitivity |
100 to 51,200 in Manual Mode (Extended: 50 to 102,400)
100 to 51,200 in Auto Mode
Video
100 to 25,600 (Extended: 51,200) |
Metering Method |
Center-Weighted Average, Evaluative, Partial, Spot |
Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
Metering Range |
-3 to 20 EV |
White Balance |
2000 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Continuous Shooting |
Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) |
Interval Recording |
Yes |
Self-Timer |
2/10-Second Delay |
Still Image Capture
Image Sizes |
3:2 JPEG / Raw
8192 x 5464
5808 x 3872
4176 x 2784
2976 x 1984
2400 x 1600 |
Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
Image File Format |
JPEG, Raw |
Bit Depth |
14-Bit |
Video Capture
Internal Recording Modes |
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/119.88 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/119.88 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/119.88 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/119.88 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
Raw 12-Bit
8192 x 4320 at 23.98/24.00/25/29.97 fps [2600 Mb/s] |
External Recording Modes |
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps |
Sensor Crop Modes |
Super35 / APS-C
4K |
Gamma Curve |
Canon Log, Canon Log 3 |
Recording Limit |
Up to 30 Minutes |
Broadcast Output |
NTSC/PAL |
IP Streaming |
Yes |
Built-In Microphone Type |
Stereo |
Audio Recording |
AAC Audio
LPCM Audio |
Interface
Media/Memory Card Slot |
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) |
Video I/O |
1 x Micro-HDMI Output |
Audio I/O |
1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body
1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body |
Power I/O |
1 x USB-C (5VDC at 1.5 A) Input |
Other I/O |
1 x USB-C (USB 3.2 / 3.1 Gen 2) Input/Output (Shared with Power Input)
1 x Canon N3 Control Input |
Wireless |
5 GHz Wi-Fi 5 (802.11ac), Bluetooth Control |
App Compatible |
Yes
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Global Positioning (GPS, GLONASS, etc.) |
None |
Monitor
Size |
3.2″ |
Resolution |
2,100,000 Dot |
Display Type |
Free-Angle Tilting Touchscreen LCD |
Secondary Display |
Top: Status Display |
Viewfinder
Type |
Built-In Electronic (OLED) |
Size |
0.5″ |
Resolution |
5,760,000 Dot |
Eye Point |
23 mm |
Coverage |
100% |
Magnification |
Approx. 0.76x |
Diopter Adjustment |
-4 to +2 |
Focus
Focus Type |
Auto and Manual Focus |
Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points |
Phase Detection: 1053 |
Autofocus Sensitivity |
-6 to +20 EV |
Flash
Built-In Flash |
No |
Maximum Sync Speed |
1/250 Second |
Flash Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
Dedicated Flash System |
eTTL |
External Flash Connection |
Hot Shoe, PC Terminal |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
0 to 85% |
General
Battery Type |
1 x LP-E6NH Rechargeable Lithium-Ion |
Tripod Mounting Thread |
1 x 1/4″-20 Female (Bottom) |
Accessory Mount |
1 x Hot Shoe Mount |
Material of Construction |
Magnesium Alloy |
Dimensions (W x H x D) |
5.43 x 3.84 x 3.46″ / 138 x 97.5 x 88 mm |
Weight |
1.62 lb / 738 g (With Battery, Recording Media) |
Packaging Info
Package Weight |
3.1 lb |
Box Dimensions (LxWxH) |
11.1 x 9 x 6″ |

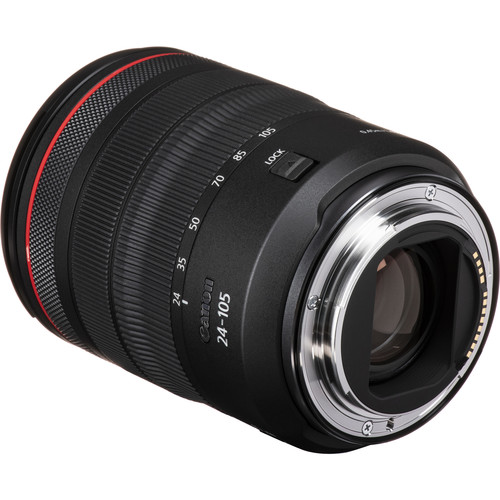

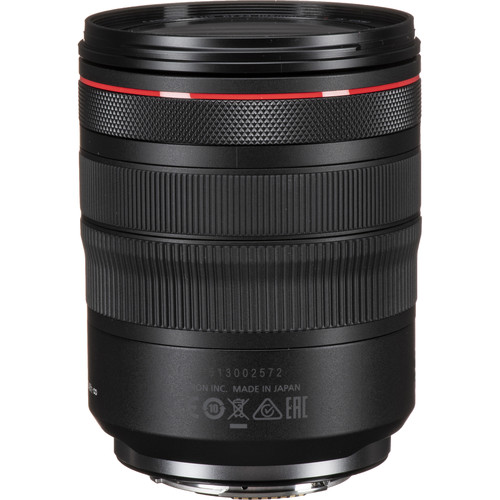

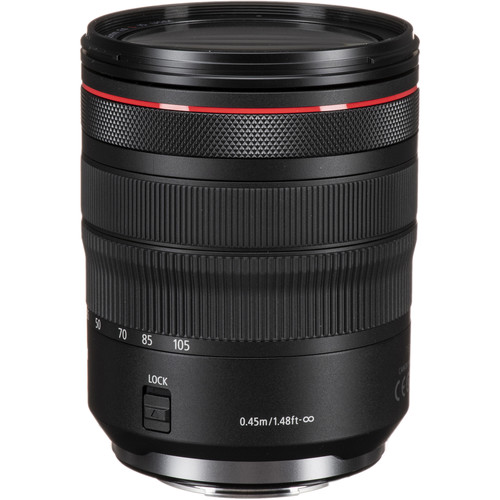

Canon RF 24-105mm F/4 L IS USM Lens
Charger
Focal Length |
24 to 105mm |
Maximum Aperture |
f/4 |
Minimum Aperture |
f/22 |
Lens Mount |
Canon RF |
Lens Format Coverage |
Full-Frame |
Angle of View |
84° to 23° 20′ |
Minimum Focus Distance |
1.48′ / 45 cm |
Maximum Magnification |
0.24x |
Optical Design |
18 Elements in 14 Groups |
Diaphragm Blades |
9, Rounded |
Focus Type |
Autofocus |
Image Stabilization |
Yes |
Filter Size |
77 mm (Front) |
Dimensions (ø x L) |
3.29 x 4.22″ / 83.5 x 107.3 mm |
Length at Maximum Extension |
5.94″ / 151 mm |
Weight |
1.54 lb / 700 g |
Packaging Info
Package Weight |
2.18 lb |
Box Dimensions (LxWxH) |
10 x 5.4 x 5.4″ |
